Ceiling Lighting · Sera

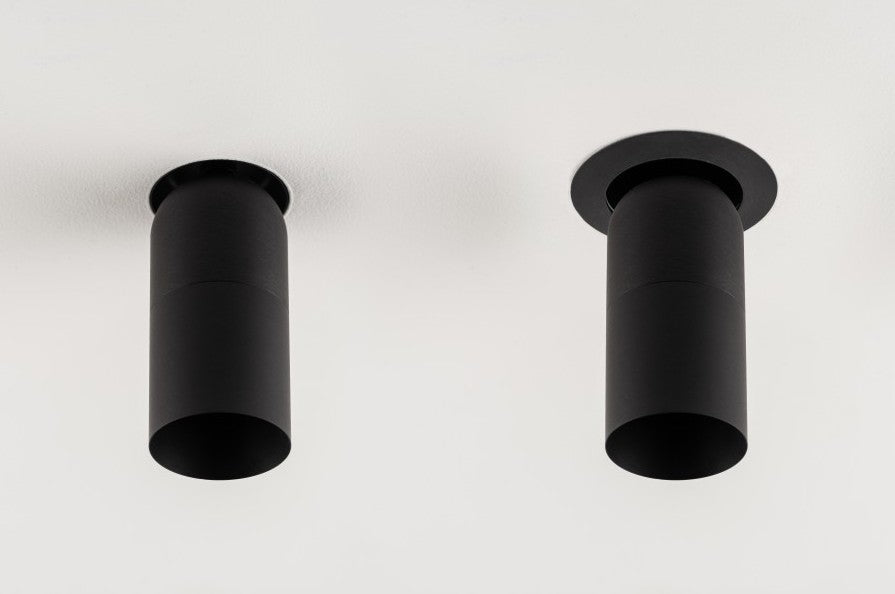

Sera Semi-Recessed Fixed
A tube-shaped spot set into a semi-recessed housing, extending slightly below the ceiling plane. A fixed downlight aimed straight down — non-adjustable.
Location
Interior · Ceiling
Driver
External 24Vdc constant-voltage, sized to total load (ordered separately) — WL DRIVER17 · 12W non-dim / WL DRIVER13 · 36W mains-dim / WL DRIVER24 · 96W mains-dim
Input Voltage
100-277Vac, driver dependent (US-compatible)
IP
IP20
Mounting Style
Trim ring or trimless — see Optional Accessories
Material
Aluminum housing
Made in Belgium
Size
Finish
Color Temperature
Optional Accessories
Qty
1
Unit
Pricing available to Trade only.
| Driver | External 24Vdc constant-voltage, sized to total load (ordered separately) — WL DRIVER17 · 12W non-dim / WL DRIVER13 · 36W mains-dim / WL DRIVER24 · 96W mains-dim |
| Beam | ø20 · 15°/20°/30°/40°/16x38°/55° ø38 · 10°/20°/30°/40°/45x20° ø58 · 12°/25°/35°/45°/12x50° |
| Dimmable | Non-dim standard · Trailing/Leading-edge (ELV/TRIAC) dimming available via WL DRIVER13/24 |
| Location | Interior · Ceiling |
| Input Voltage | 100-277Vac, driver dependent (US-compatible) |
| IP | IP20 |
| Mounting Style | Trim ring or trimless — see Optional Accessories |
| LED | ø20 · 3W · 195lm (2700K) / 205lm (3000K) · CRI90+ ø38 · 6W · 450lm (2700K) / 480lm (3000K) · CRI97 ø58 · 12W · 880lm (2700K) / 930lm (3000K) · CRI95+ |
| Efficacy | ø20 · 65 lm/W (2700K) / 68 lm/W (3000K) ø38 · 75 lm/W (2700K) / 80 lm/W (3000K) ø58 · 73 lm/W (2700K) / 78 lm/W (3000K) |
| Dimensions | ø20 · 31mm collar · 46mm extension ø38 · 55mm collar · 86mm extension ø58 · 82mm collar · 121mm extension |
| Material | Aluminum housing |
| Origin | Made in Belgium |
Semi-recessed installation — the tube-shaped housing extends slightly below the ceiling plane.
Requires a US IC or Non-IC housing, specified separately from the Sera module.
